Description:

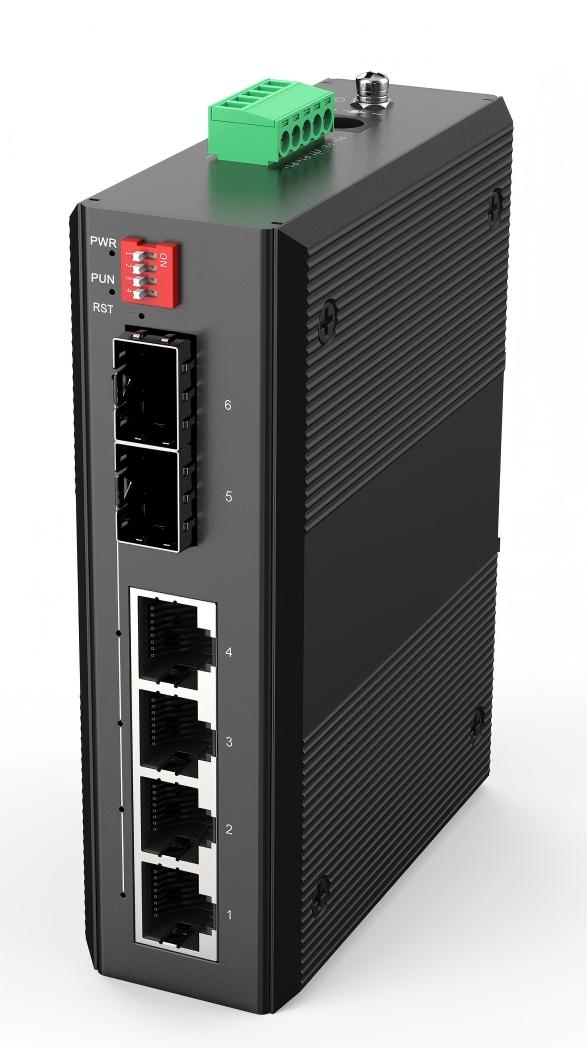

Keep your network running in the toughest conditions with the BD-6S3204. This rugged gigabit managed switch comes with 4 copper ports and 2 fiber uplink ports, advanced VLAN and redundancy features, and a sturdy IP40 case. Perfect for industrial, transportation, and security applications, it operates reliably from -20°C to 70°C with dual DC power inputs for maximum uptime.
Industrial network managed switches Main Features
● 4x10/100/1000Base-TX RJ45 ports, 2x100/1000Base-FX fiber ports
● Support Auto-MDIX, and full/half duplex self-negotiation mode
● Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
● Support 9K bytes giant frame, compatible with various extension protocol
● 4K MAC address table
● Support IEEE802.3az energy efficient Ethernet technology
● Electric 4KV surge protection, easy to use in outdoor environment
● Complete status indicator, working state at a glance
● Power input polarity protection design, no worry about wrong operation
● Full gigabit L2 management, easy to manage the industrial network by WebGUI
● Build up a redundant network with STP/RSTP
Industrial Case and Installation
● IP40 Aluminium case, Fanless design
● 9-56V DC redundant power with reverse polarity protection
● DIN-rail and wall mount installation
● -20 to +70℃ operating temperature
Industrial network managed switches Specification
Physical Port
|
RJ45 port and speed |
4x10/100/1000Base-TX |
|
Fiber port and speed |
2x100/1000Base-FX |
Parameters
|
Ethernet standards |
IEEE 802.3 for 10BaseTIEEE 802.3u for 100BaseT(X) and 100BaseFXIEEE 802.3ab for 1000BaseT(X)IEEE 802.3z for 1000BaseSX/LX/LHX/ZXIEEE 802.3x for flow controlIEEE 802.1D-2004 for Spanning Tree ProtocolIEEE 802.1w for Rapid Spanning Tree ProtocolIEEE 802.1p for Class of ServiceIEEE 802.1Q for VLAN Tagging |
|
Packet buffer |
1Mbits |
|
Maximum packet length |
Up to 9k Bytes |
|
MAC address table |
4K |
|
Transmission mode |
Store and Forward(full/half duplex mode) |
|
Exchange property |
Delay time: < 7μs Backplane bandwidth: 12Gbps Packet forwarding rate: 1488100 (64Byte) |
LED Indicator
|
Power |
Connect-always |
|
RJ45 |
Link/Act: connect-always; data exchange-twinkle |
|
Fiber |
Link/Act: connect-always; data exchange-twinkle |
Power Information
|
Power access mode |
Phoenix terminal, DC seat |
|
Redundant power input |
DC 9-56V ,Redundant dual inputs |
|
Overload protection |
Yes |
|
Power reverse |
Support |
|
Power consumption |
Full-load<10W |
Software Features
|
Redundant Network |
Support STP/RSTP |
|
Multicast Support |
Support IGMP Snooping V1 |
|
VLAN |
Support IEEE 802.1Q 4K VLAN |
|
QOS |
Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA |
|
Diagnostic Maintenance |
Support port mirroring, Ping |
|
Management Function |
WEB |
|
Security |
Broadcast/Multicast Storm Protection, MAC filtering |
Introduction to DIP switches
|
DIP Switch |
State |
Description |
|
#1 |
ON |
RSTP Disabled |
|
OFF |
RSTP Enable(Default) |
|
|
#2 |
ON |
Port VLAN Enable |
|
OFF |
Port VLAN Disable(Default) |
|
|
#3 |
ON |
SFP Port is 100M |
|
OFF |
SFP Port 100/1000M(Default) |
|
|
#4 |
|
Function Reserve |
NOTE:
- RSTP switches to the ON position,which indicates RSTP is in disabled status.
- VLAN switches to the ON position, indicating VLAN is enabled. All LAN ports can only communicate with the SFP uplinks when this option is enabled.
- To take effect the DIP Switch function while the ethernet switch is in operation there is a need to reboot the Ethernet switch after tuning the DIP switch.
Physical Property
|
Protection grade |
IP40 aluminum case |
|
Cooling mode |
Natural cooling, no fan design |
|
Dimensions |
120mm x 90mm x 35mm (L x W x H) |
|
Installation mode |
DIN trail/wall-mountable |
|
Weight |
350g |
Working Environment
|
Operating Temperature |
-20℃~70℃ |
|
Operating Humidity |
5%~90% non-condensing |
|
Storage |
-40℃~85℃ |
Warranty
|
MTBF |
500,000 hours |
|
Defects Liability Period |
3 year warranty, lifetime technical support |
Certification Standard
|
EMI |
EN55032 Class A, CISPR 32 FCC Part 15B Class A |
|
EMS |
EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8 |
|
Collision |
IEC60068-2-27 |
|
Drop |
IEC60068-2-32 |
|
Vibration |
IEC60068-2-6 |
|
Safety grade |
EN60950-1 |
Dimensions (Unit: mm)）
Package List
|
Device |
1x Industrial Ethernet Switch |
|
Installation Kit |
1x DIN-Rail Clip 2x Wall-Mount Kits |
|
Documentation |
1 x Quick installation guide 1 x Warranty card 1x Product notice |
Order Information
|
Model Number |
10/100/1000Base-TX，RJ45 |
100/1000Base-FX，LC/SC/FC/ST |
Input Voltage |
|
BD-6S3204 |
4 |
2 |
DC 9~56V |
